Note:

For these special local vehicle car brand below, they are not supported as default.
If you need these car brand, it will need to purchased separately, pls feel free to contact us,,thanks.
- AU vehicle: fordau, holden
- Brazil, Latin America, South America vehicle: fiat, brazil, Gm brazil, maruti Suzuki, Mahindra
- Indian vehicle: maruti Suzuki, Mahindra, tata, india Datsun

Note:
1. KM100 does not support Mercedes-Benz.
2. KM100 only supports some BMW cars. Before purchasing, you can send the model, year and VIN to us to comfirm.

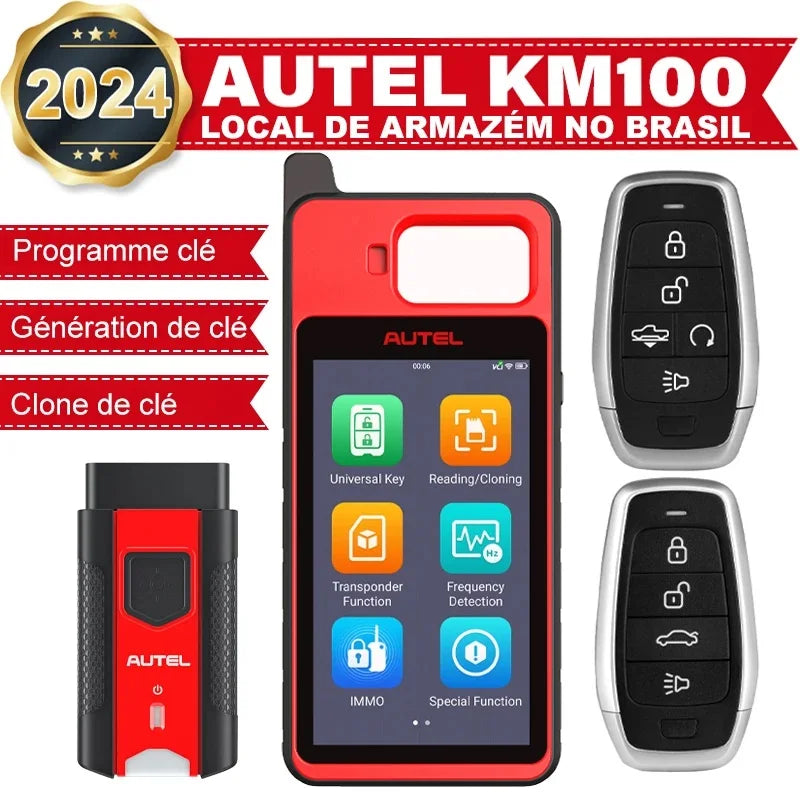

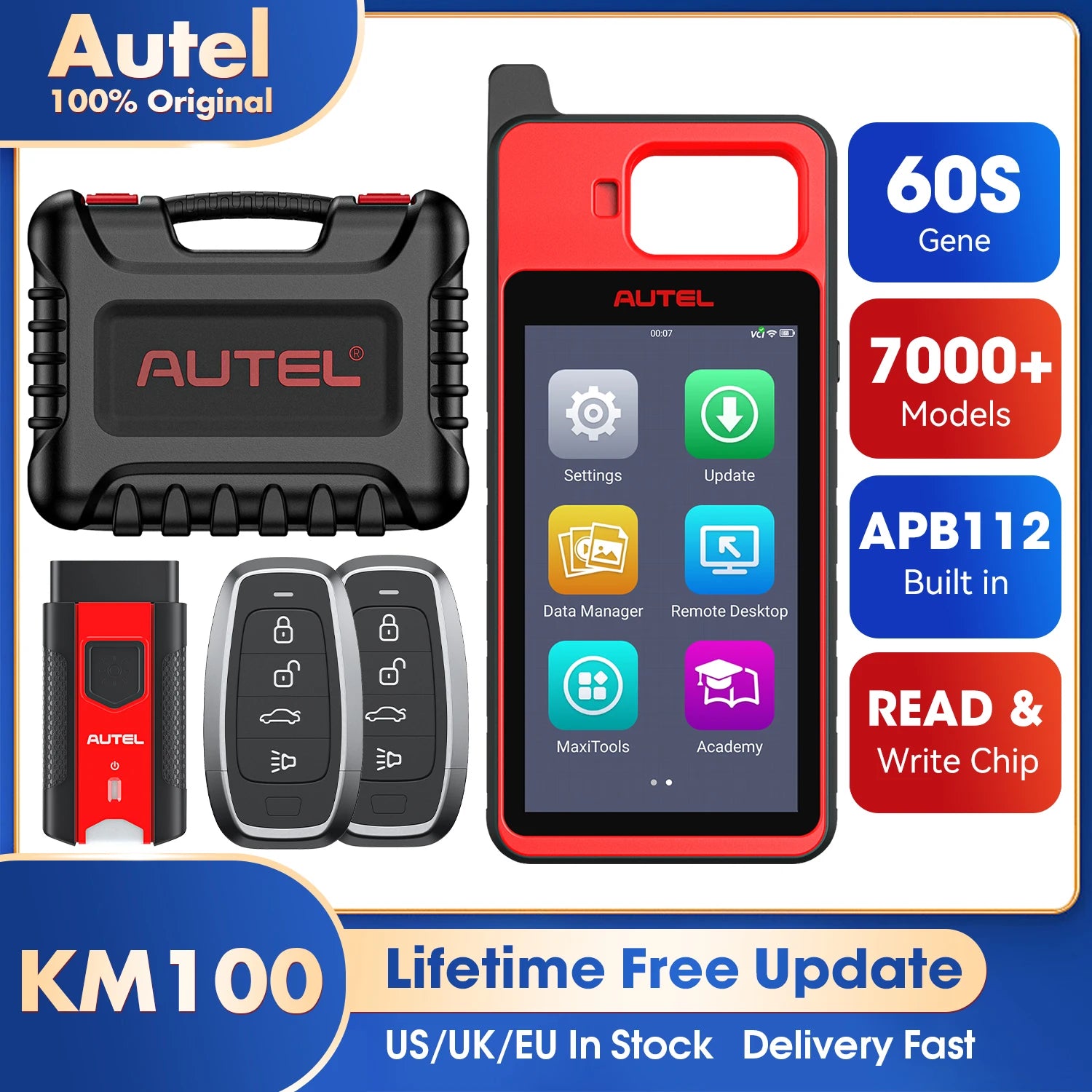

Autel MaxiIM KM100 Main Features

Complete Ability in IMMO & Key Programming

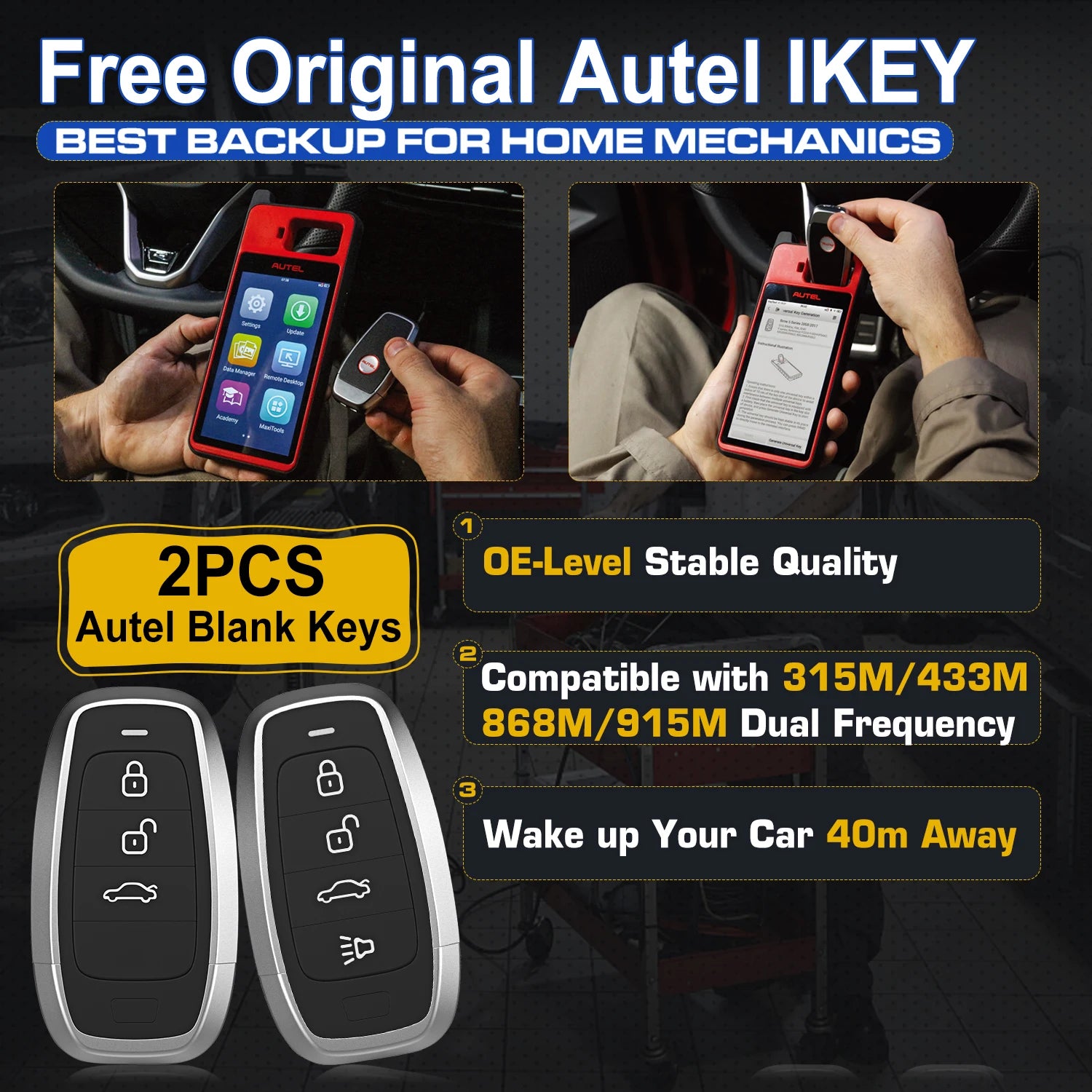

• Programs Autel' s IKEY universal key as smart key replacement for 700+ vehicles

• Extensive IMMO Key programming coverage (90% by OBD) including BMW, Volkswagen, Honda.

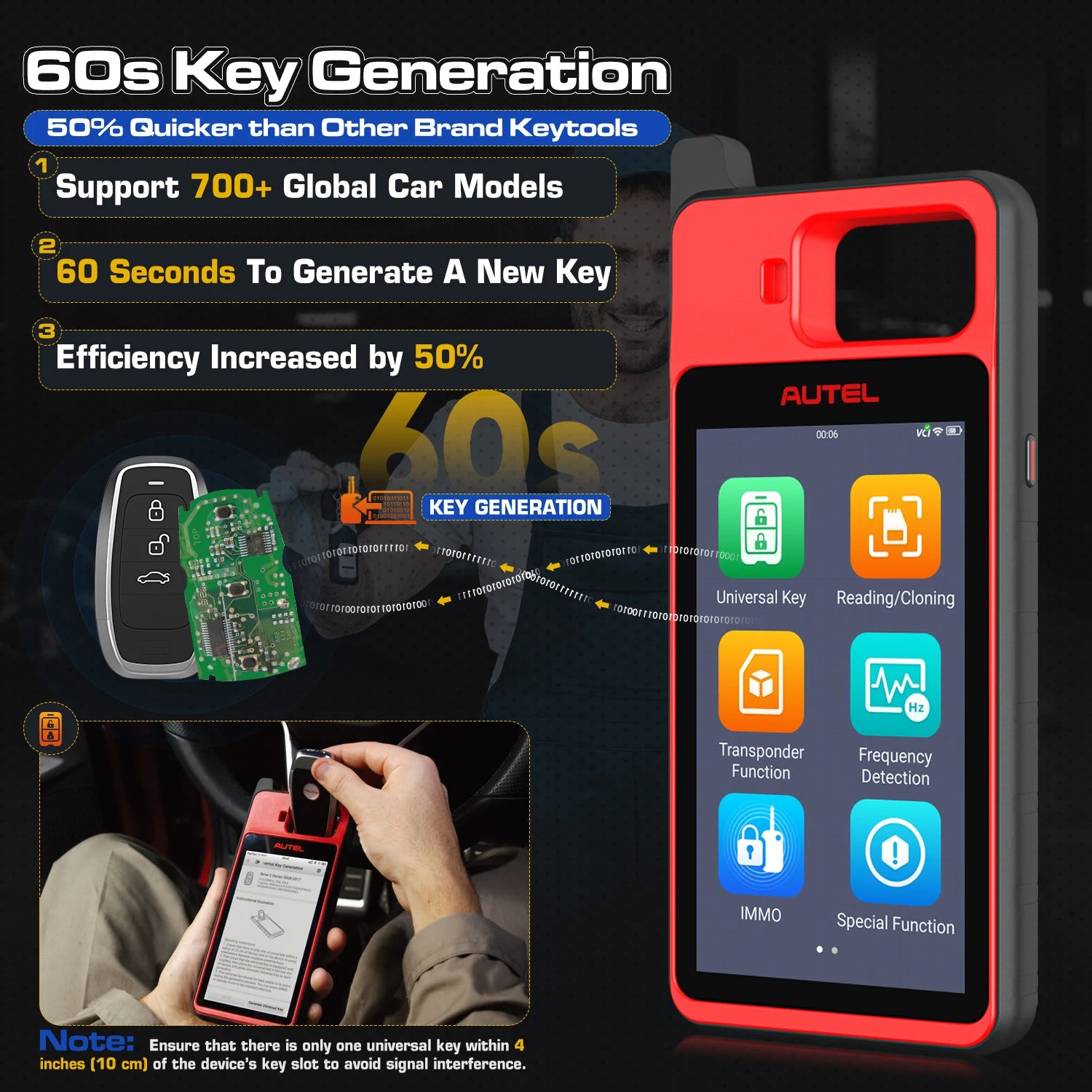

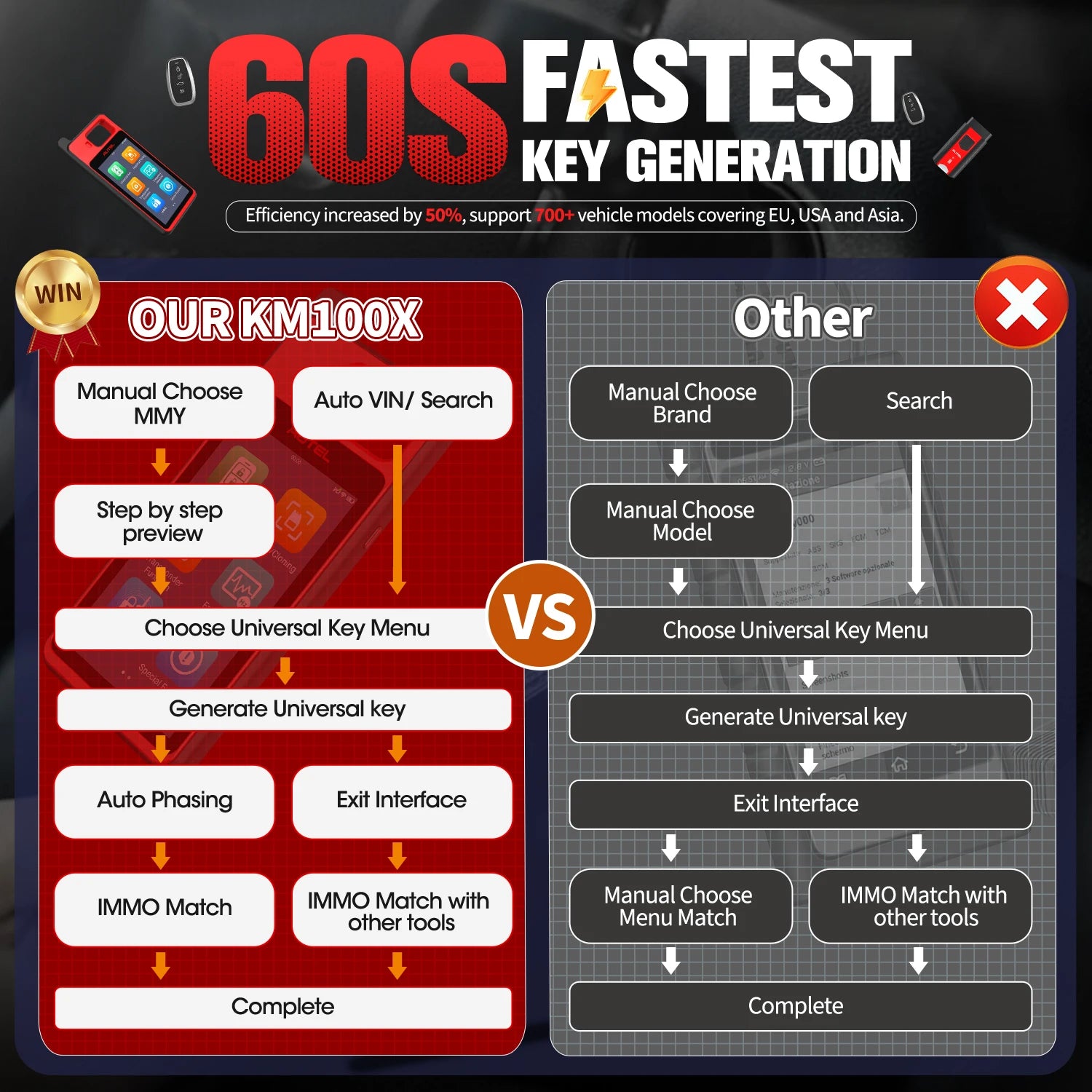

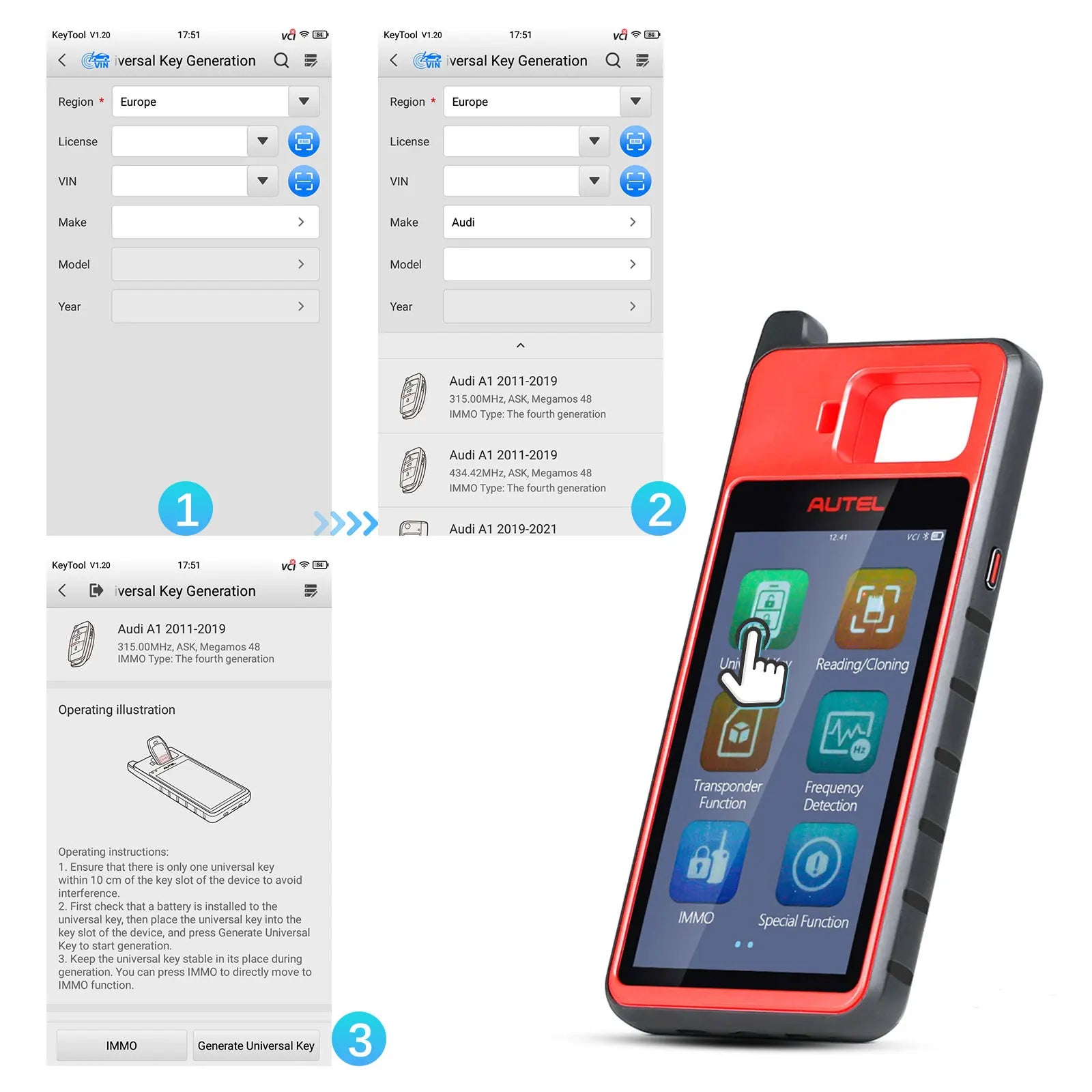

• 60 Seconds Key Generation (Autel Universal Ikey Only)

• Transponder Reading / Writing / Cloning, Transponder Editing Supporting 20 Categories

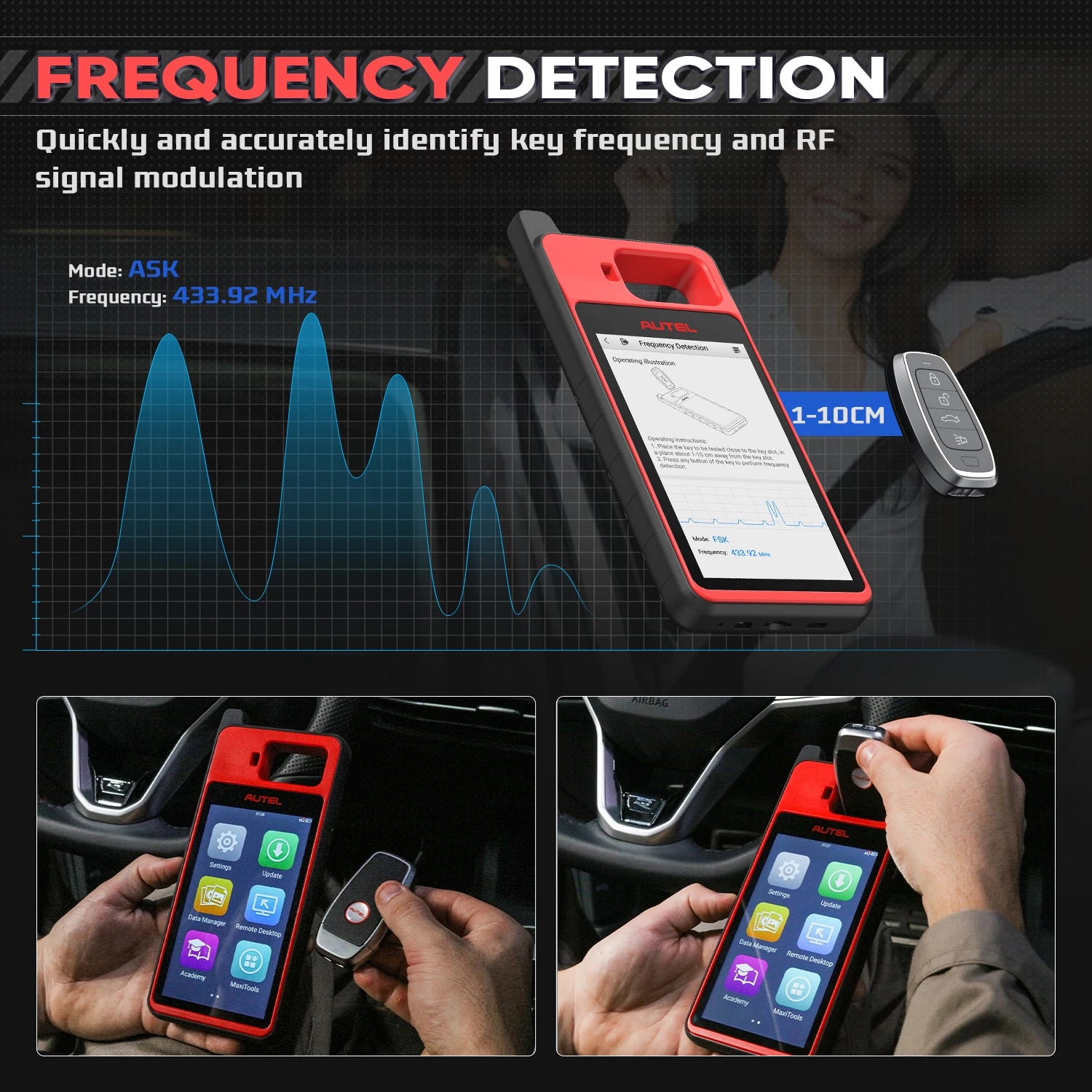

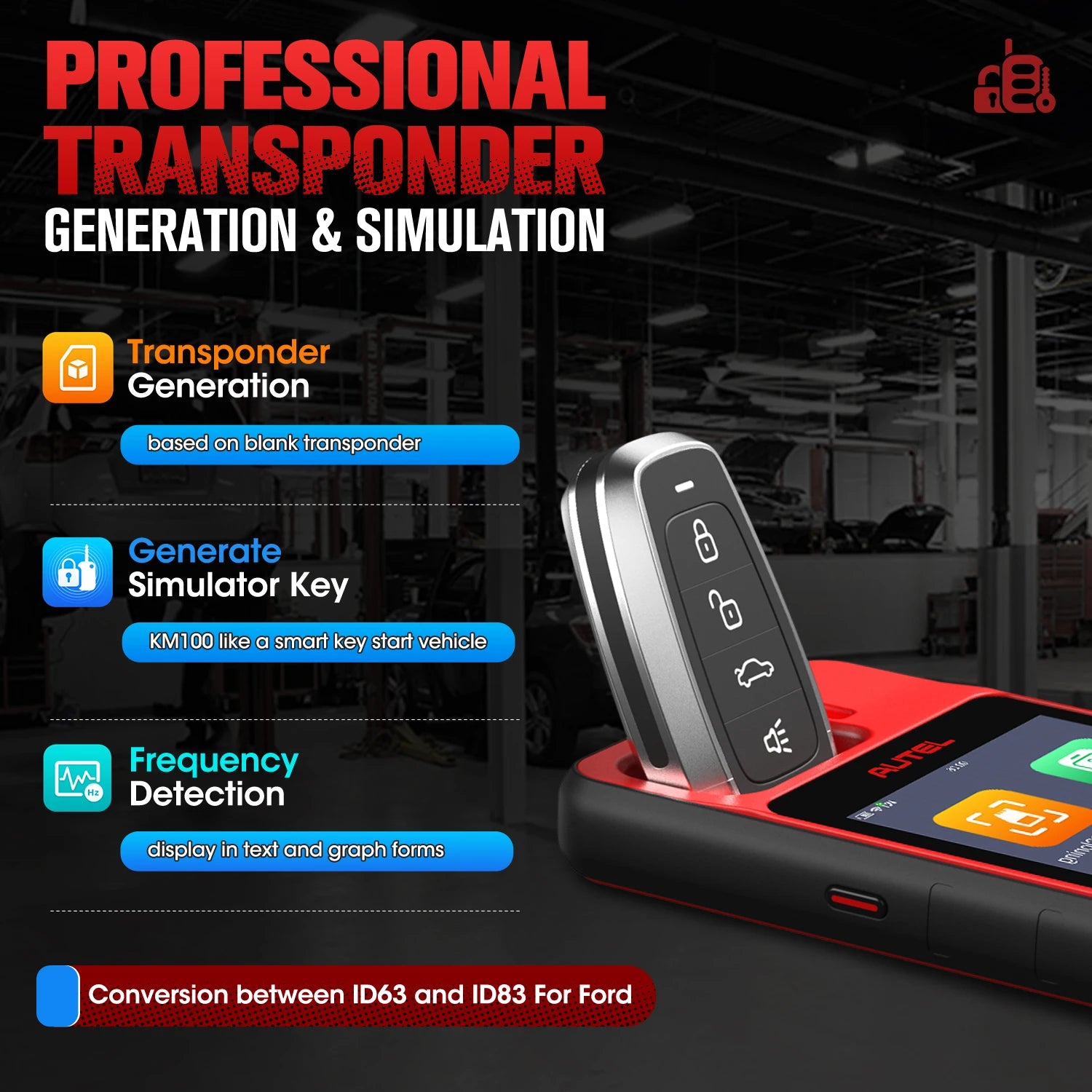

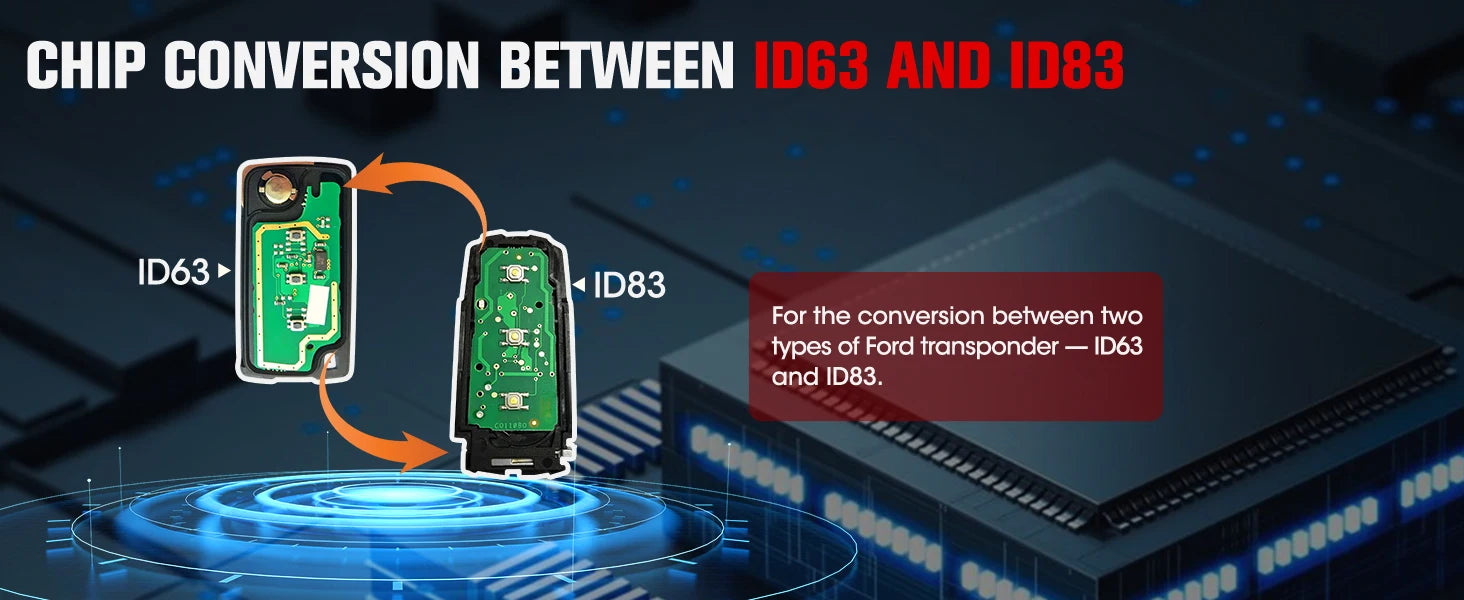

• Transponder Generation/ Simulation/ Conversion, Chip Read & Write, Cloning and Frequency Detection

• Key Renewal: Supporting 36 Vehicle Makes

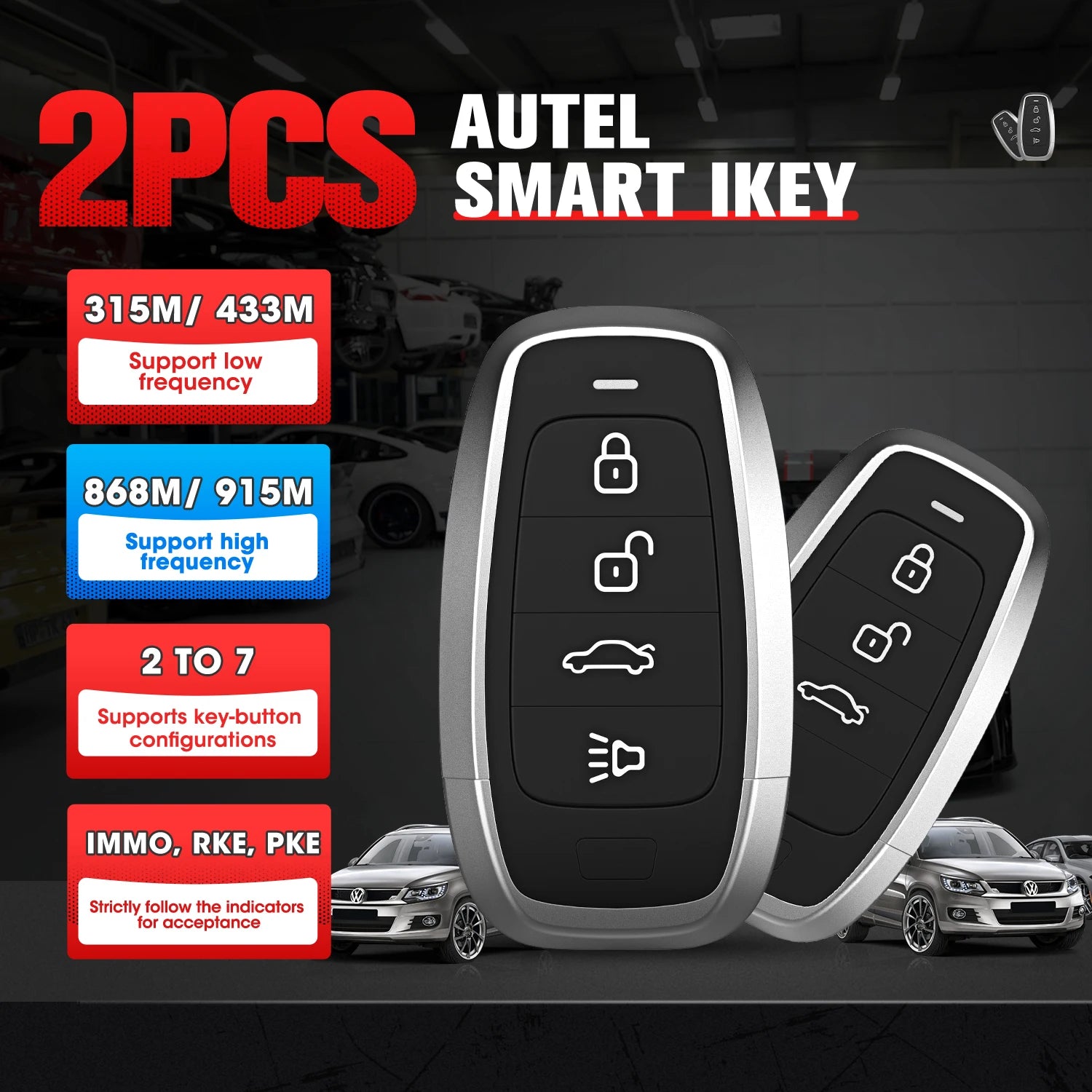

• Dual-Band, High Frequency Transmitter 315MHz/434MHz or 868MHz/915MHz

• AutoVin vehicle identification to ensure accuracy

• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

• Supporting Certification Requirements of Various Regions

• Supporting PLC V200

• IMMO Data Processing, Key Unlocking, Universal Key Information Detection, Button Adjustment, Ignition Coil Detection

Advanced Hardware Configuration

5.5-inch screen with 1280 x 720 resolution, Rockchip PX30 (4x ARM Cortex-A35 1.5GHz), Android 9.0, 2GB RAM/64GB Memory, 8MP Camera, Wi-Fi, Bluetooth 5.0, USB 2.0 type C, 4950mAh Battery

Autel KM100 Advanced IMMO Functions

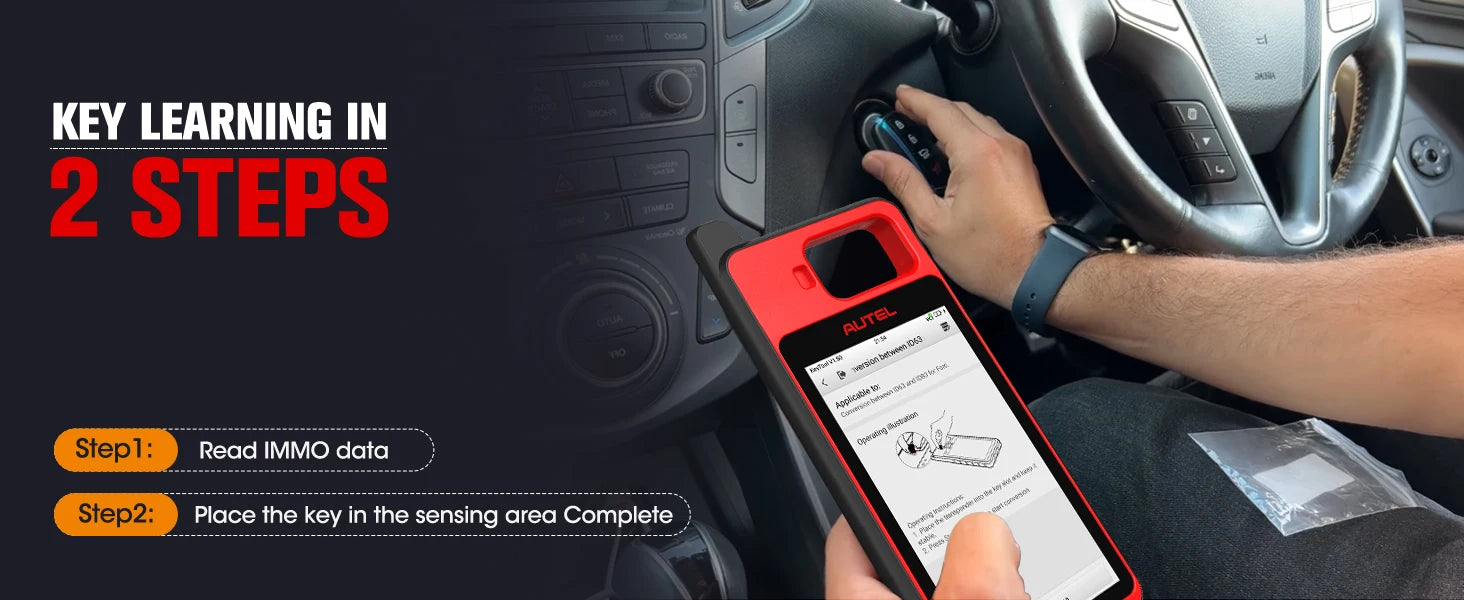

• Key Learning via OBD for 90% Vehicles

• Generate Simulator Key (KM100 as Emergency Key)

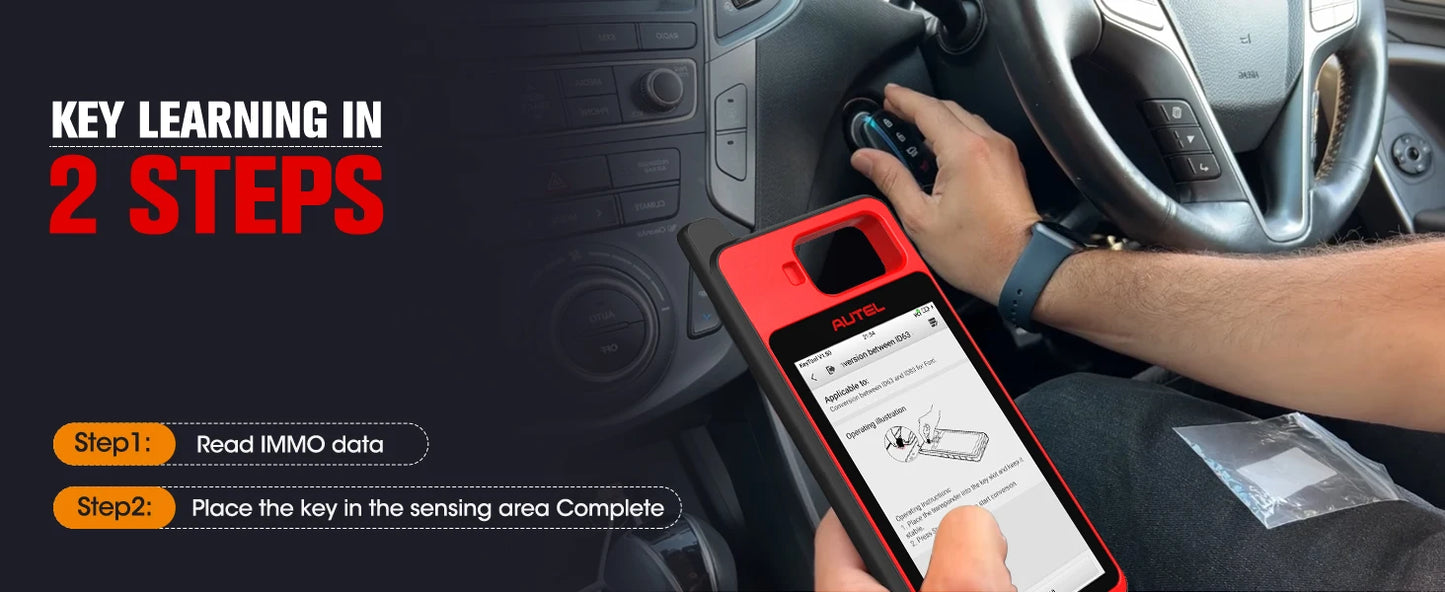

• Smart Remote Learning / Key Learning

• IMMO Data Backup / Restore

• Key Generation / Program a Smart Key

• All Key Lost / Add a Key

• Read PIN / Password Calculation

• IMMO ECU Reset / Adaptation / Refresh / Coding

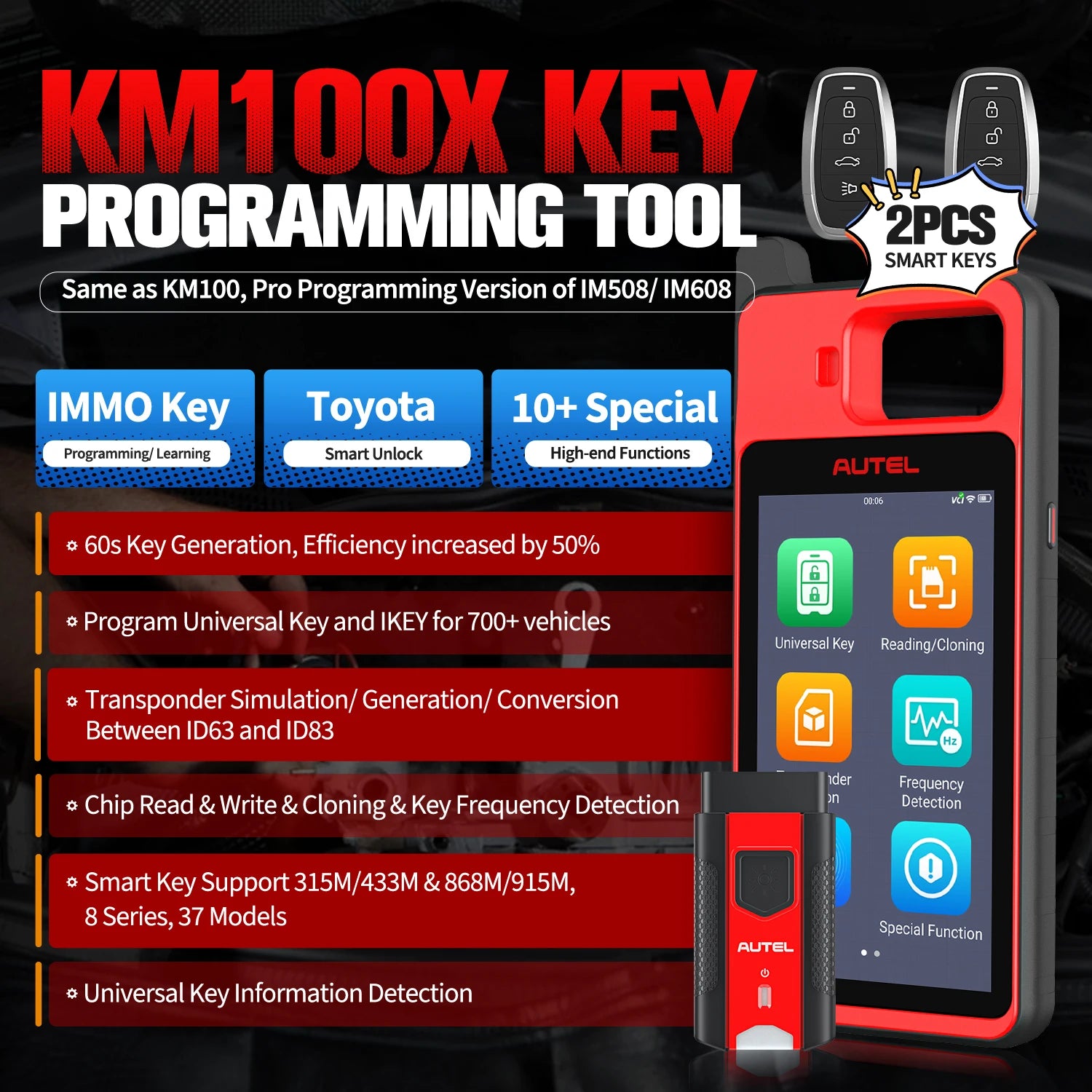

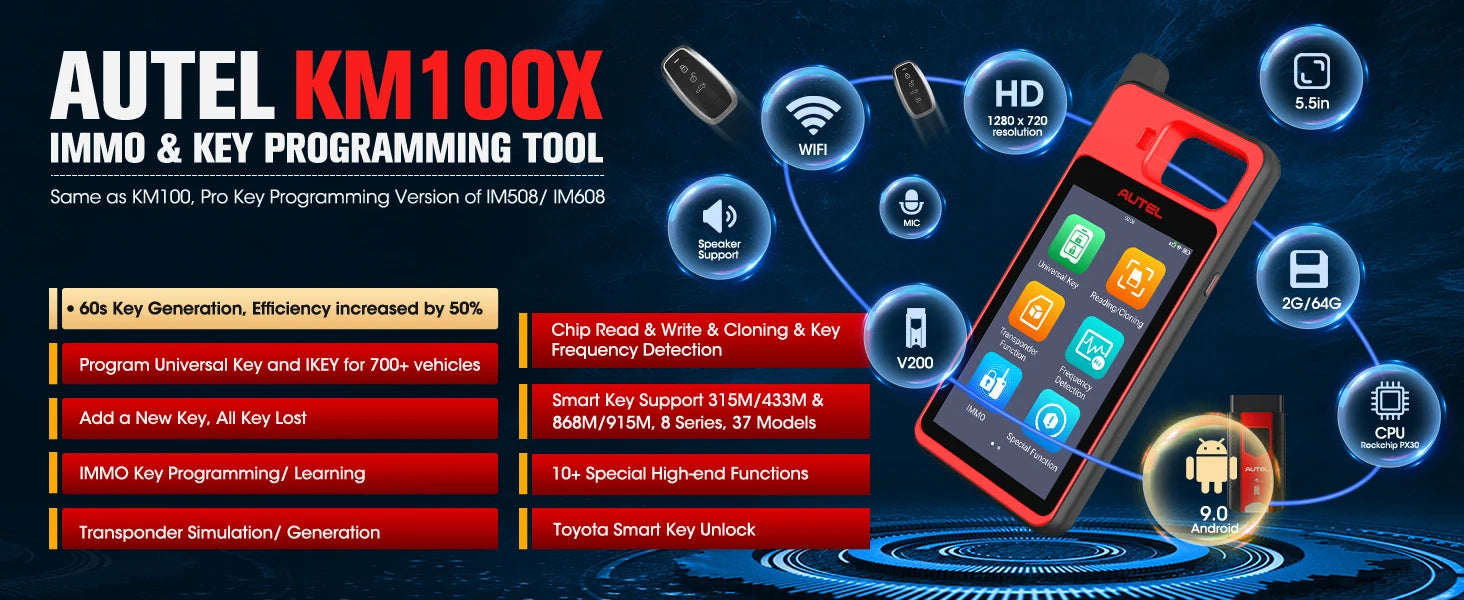

AUTEL KM100X Complete Ability in IMMO & Key Programming-Autel MaxiIM KM100X--- EASY BUT IMPRESSIVE TRANSPONDER READING/ WRITING/ CLONING

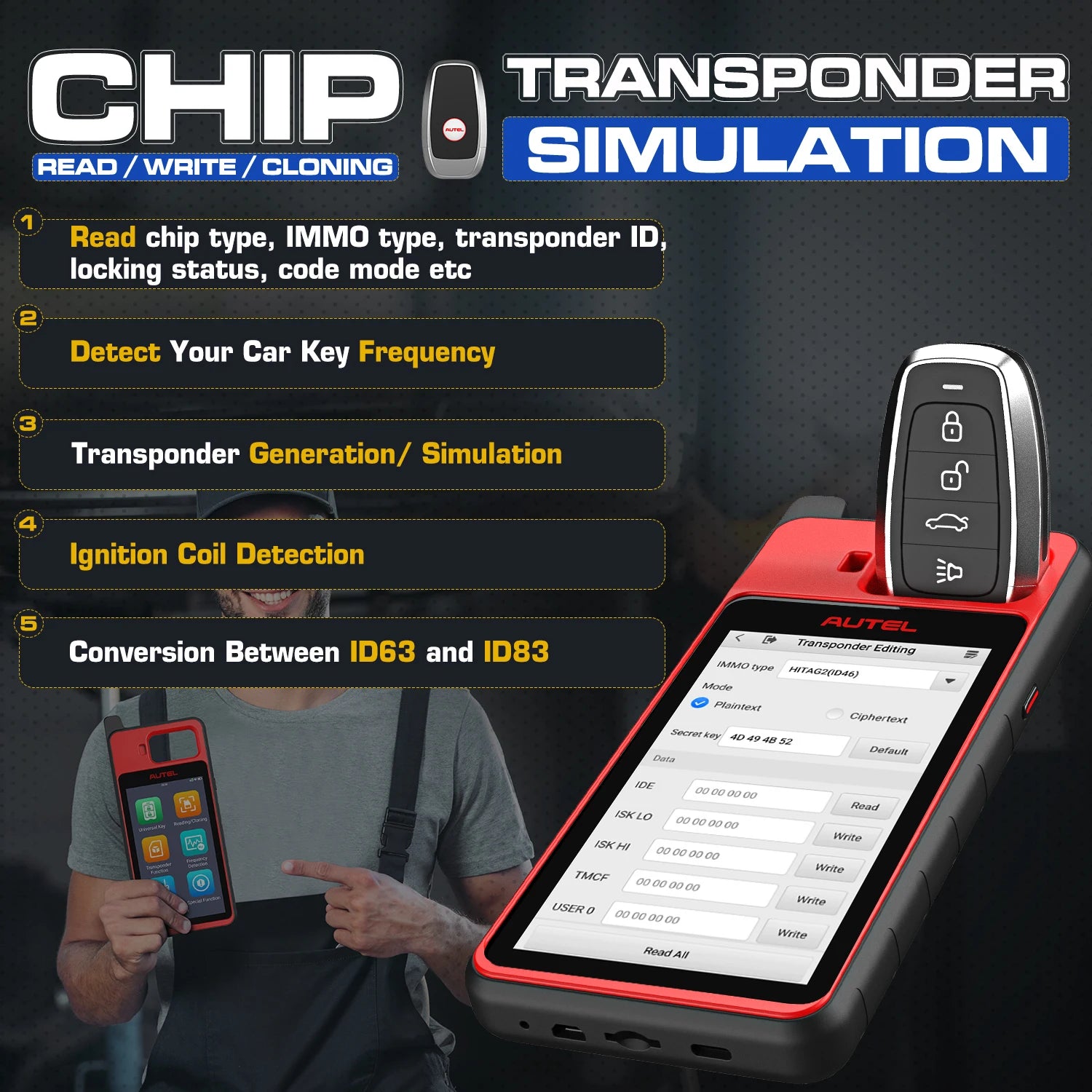

● Transponder Reading: give you the access to some basic information pertaining to the key, including chip type, IMMO type, transponder ID, locking status, and code mode.

● Transponder Cloning: Autel KM100X key programmer supports various transponder types for cloning and editing, You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.

● Transponder Editing: read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.

● IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra key available.

Why choose Autel MaxiIM KM100/KM100X?

1. Free Update Online Lifetime
2. Global Version No IP Blocking Problem
3. Supporting 8 Key Series And 37 Models
4. Simple Operation, Guided User Instructions, Easy To Use
5. Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
6. Multi-Language Supported: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese
7. KM100 Adopts a High-Resolution Display Screen of 1280*720, and Supports Touch-Screen Operation, which is sensitive, convenient, and fast to use.
8. Support Chip Simulation for Emergency Use (for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.

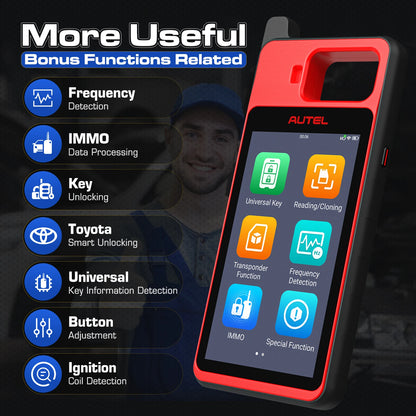

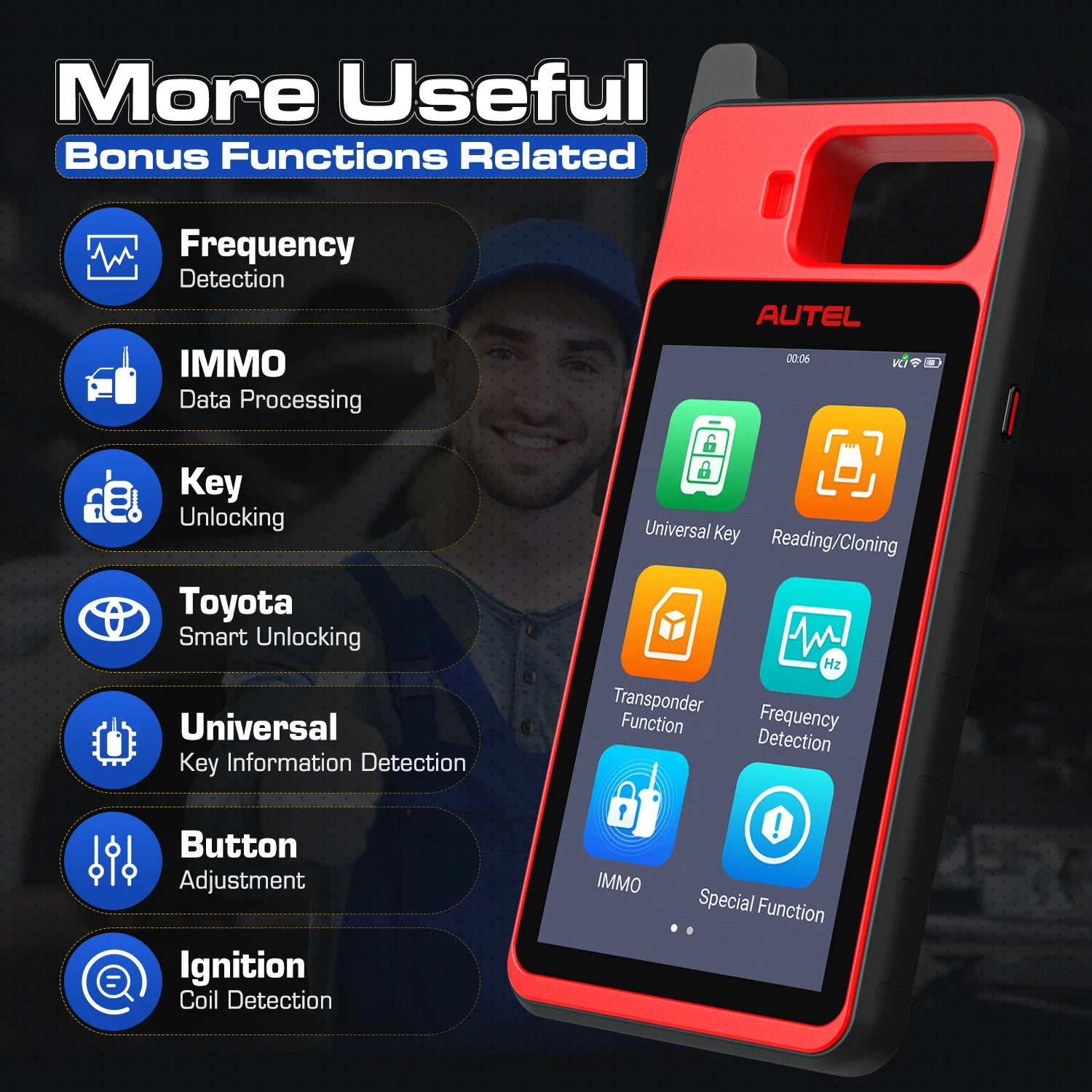

10+ Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!

Apart from professional features such as Universal Key Generation, Complete IMMO Key Learning, 2025 Autel MaxiIM KM100 KM100X also supports 10+ hot and special functions:

1. IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra ke-y available.

2. Key Unlocking (Key Renewal): enables you to renew a used smart key to unlock a new car, which is achieved by renewing the firmware of the used smart key via cable connection, working on 36 vehicle makes.

3. Toyota Smart Un-locking: With this function, you can unlock other Toyota models with your Toyota smart key. Unlocking of the 4D 40/80 bit and 8A 128 bit original Toyota smart chips is supported.

4. Button Adjustment: assign the button functions of the Autel universal ke-y.

5. Universal Ke-y Information Detection: especially designed to read the Autel universal key information, including the serial number, key ID, and IMMO version, etc.

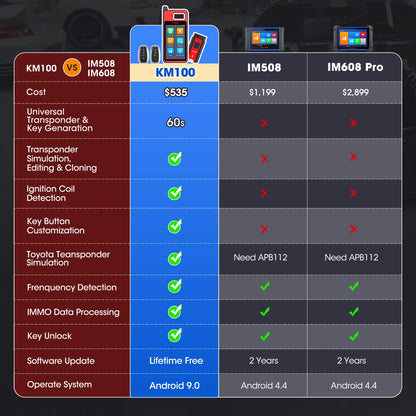

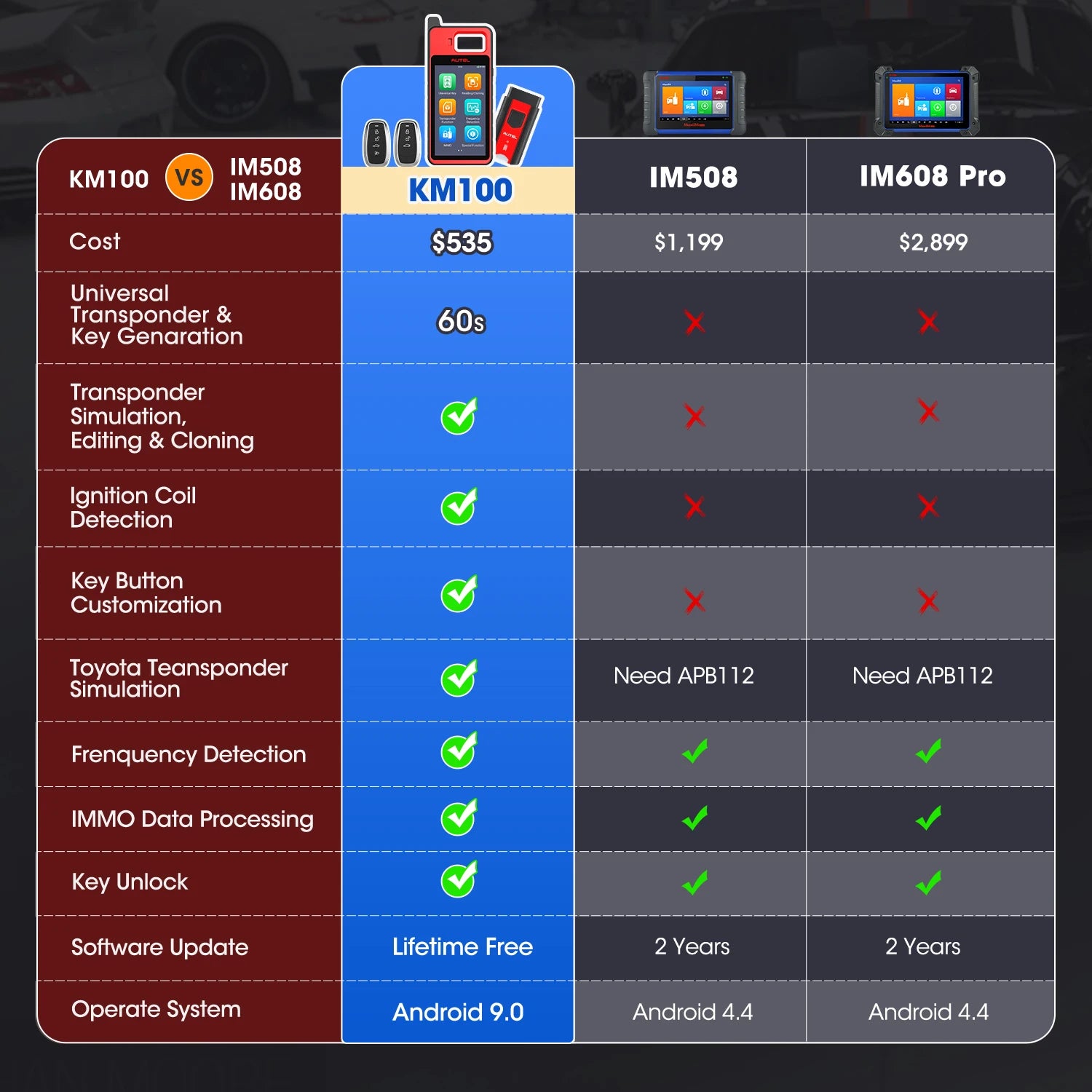

6. Ignition Coil Detection: enables the key tool to gather the data of the IMMO protocol and transponder type of the vehicle, while Autel old models IM508/ IM608 cannot support this special functions.

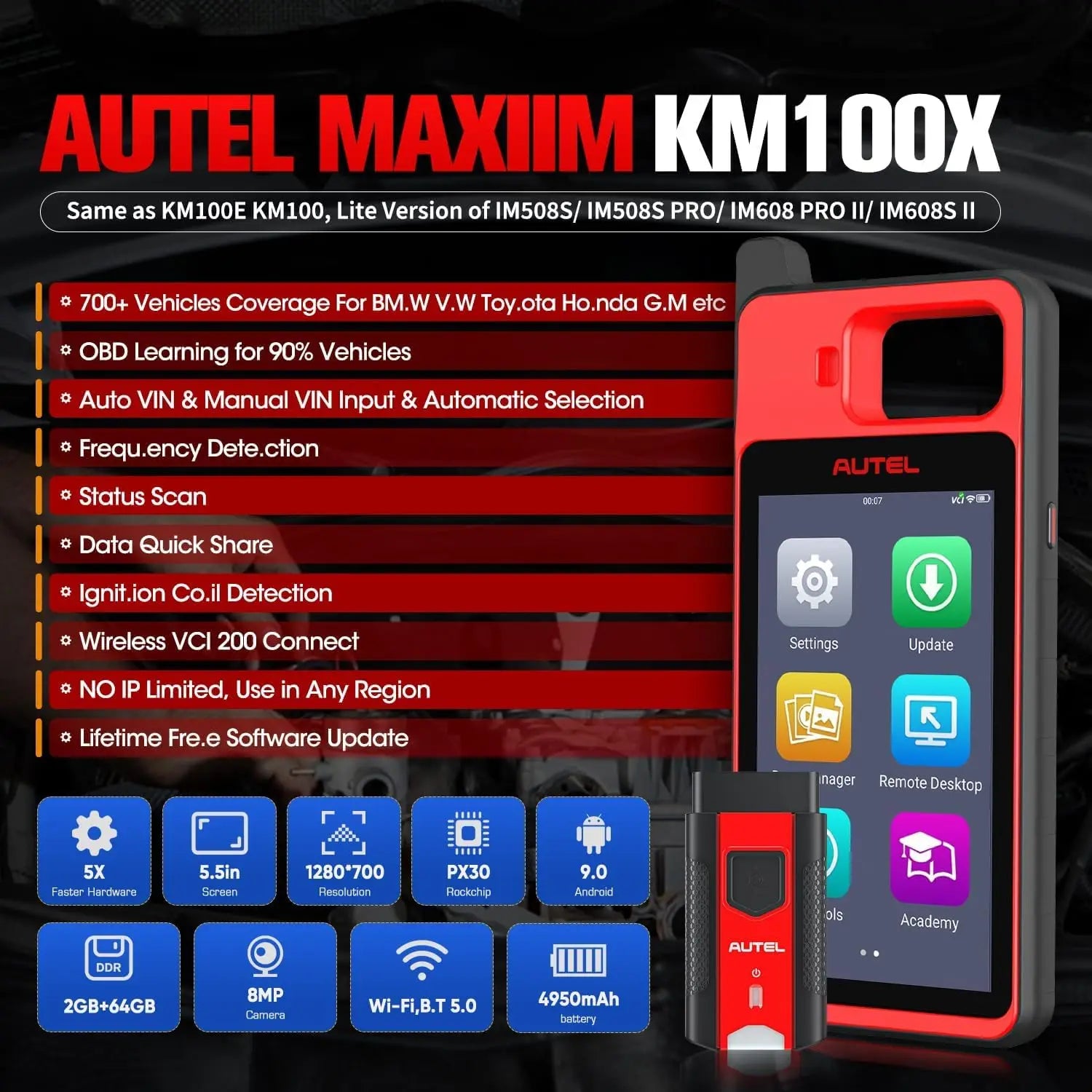

Specification:

Dimensions  (WxHxD): 200mm(7.9") x 89 mm (3.5")   x 22 mm (0.87")
Weight: 352.7g (0.8 lb)
Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android 9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/OutputMIC: supported
Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

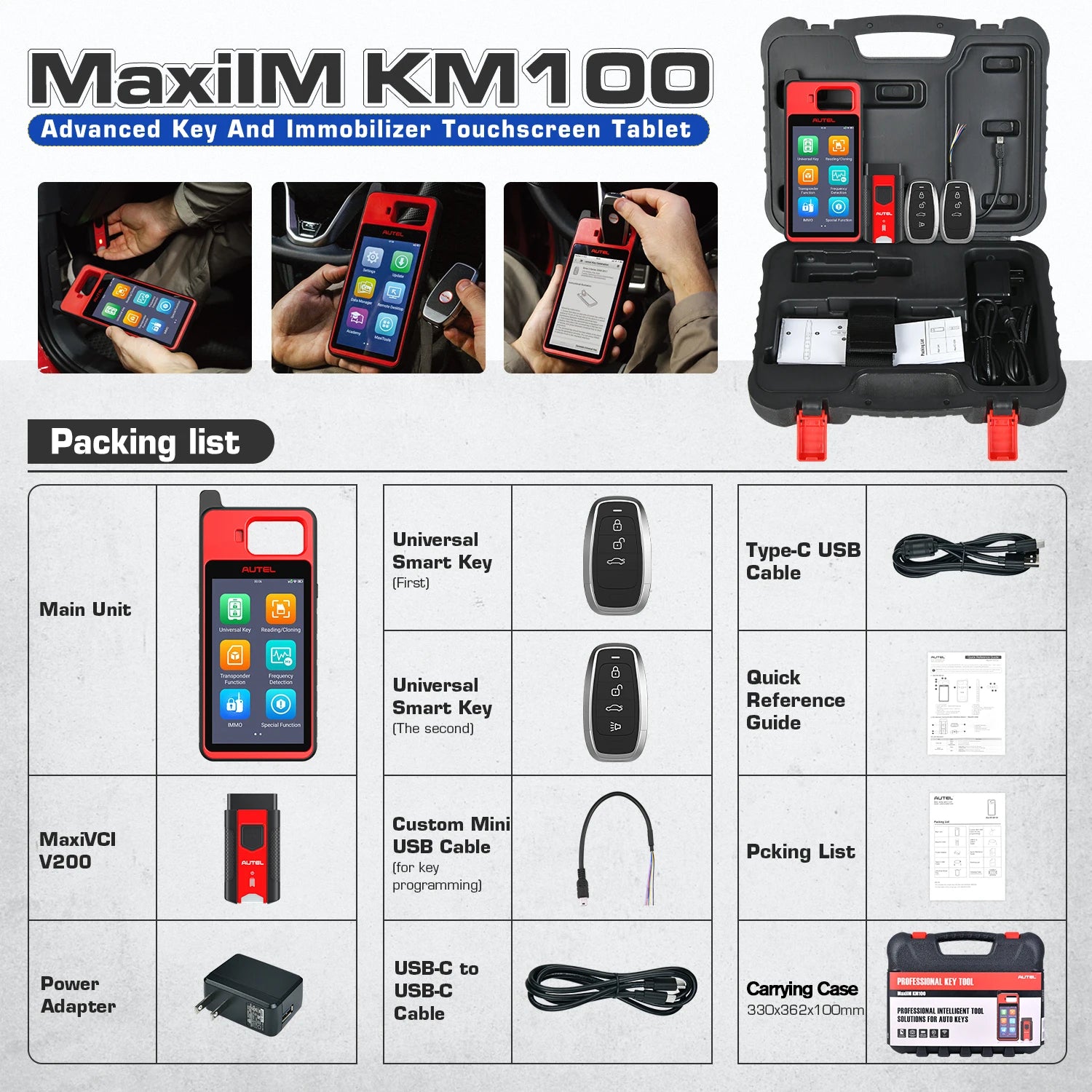

Package List:

1pc x KM-100(X) Universal Key Generator
1pc x OBD Adapter
2pcs x Universal Keys
1pc x Hard Shell Carrying Case
